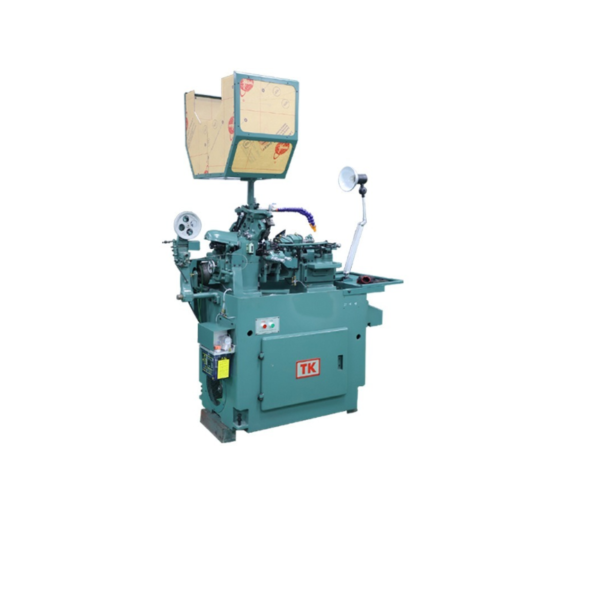

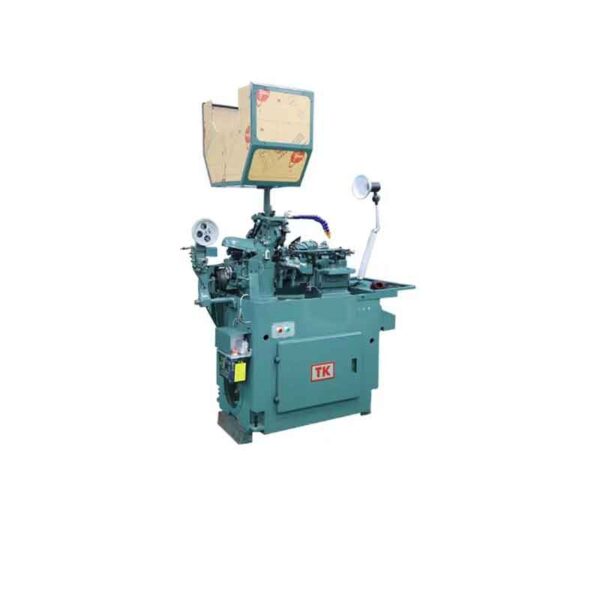

The high-speed turning cam automatic lathe, with cam control technology as its core, integrates the three advantages of high speed, precision, and automation, making it an ideal choice for mass production of mid to high end parts. By optimizing the tool path and cam parameters, machining efficiency and surface quality can be further improved, helping enterprises achieve cost reduction and efficiency improvement.
Characteristic：
- High speed and efficiency:The spindle speed can reach 6000-10000 rpm (depending on the model), coupled with cam linkage control, shortening the processing time of a single process and achieving a production efficiency of 3-35 pieces/minute.
- High stability: The spindle and cutting tools undergo carburizing heat treatment and precision grinding to ensure long-term stability. The overall service life of the machine can be up to 20 years.

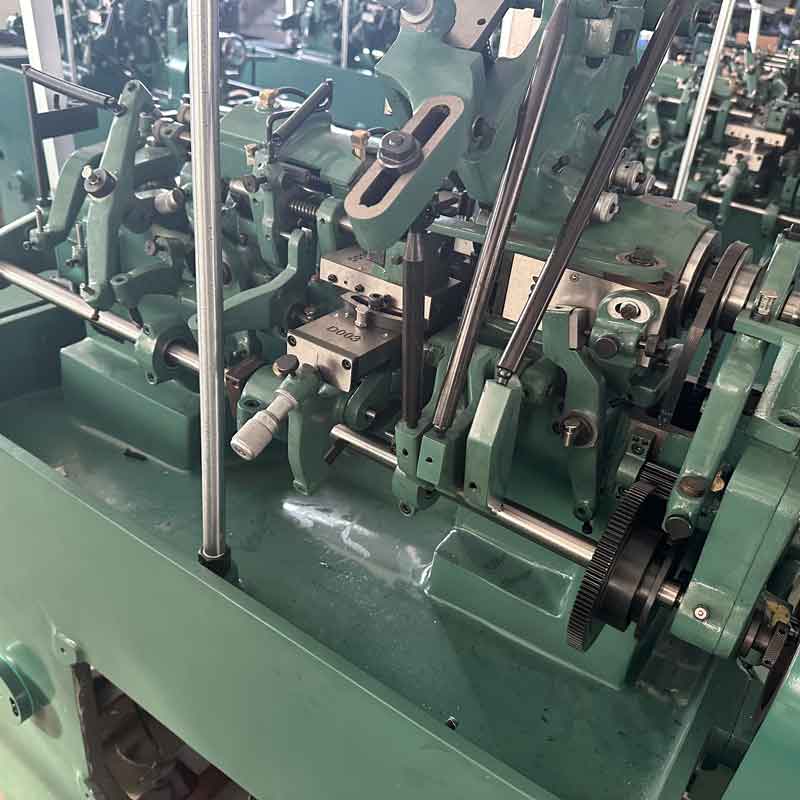

- It supports simultaneous machining with multiple tools (such as turning, drilling, tapping, chamfering, etc.), reducing the turnover of processes.
Specifications：
| （Item） | A-2025 | Stand accessories | ||||
| Spindle speed | 2000-7000rpm | 01.Hold-all 02.Feed rack 03.Tap coat 04.Cutting cooling device 05.Adjustment tool 06.Oil proof cover 07.Protective cover 08.Machine oil basin |
1 PC 1 Set 2 PC 2025 1 Set 1 Set 1 Set 1 Set 1 Set |
|||
| Camshaft speed | 1.4-45.7rpm | |||||
| Number or tail shafts | 2 | |||||

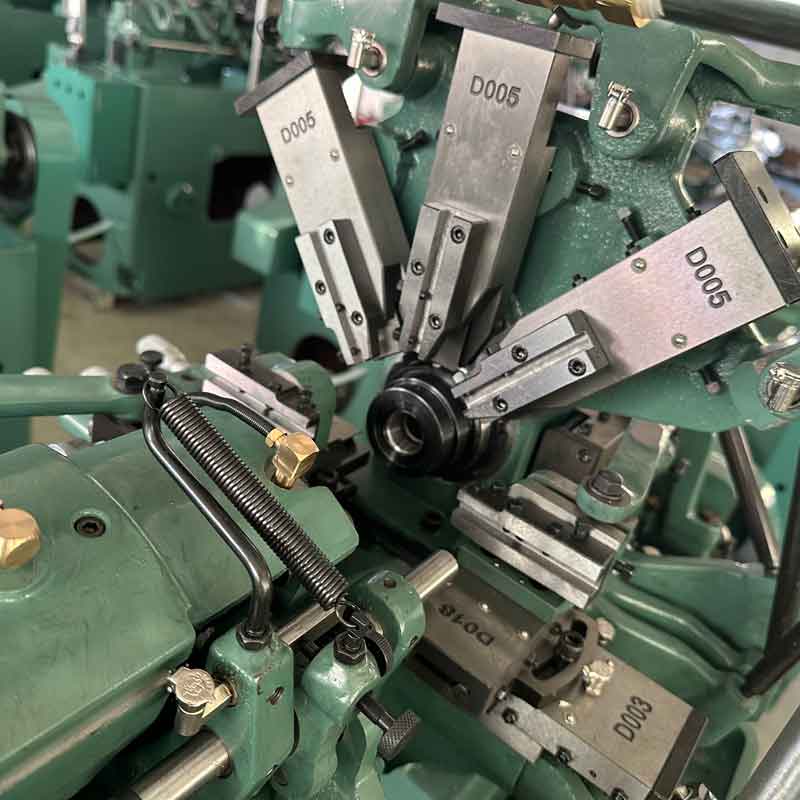

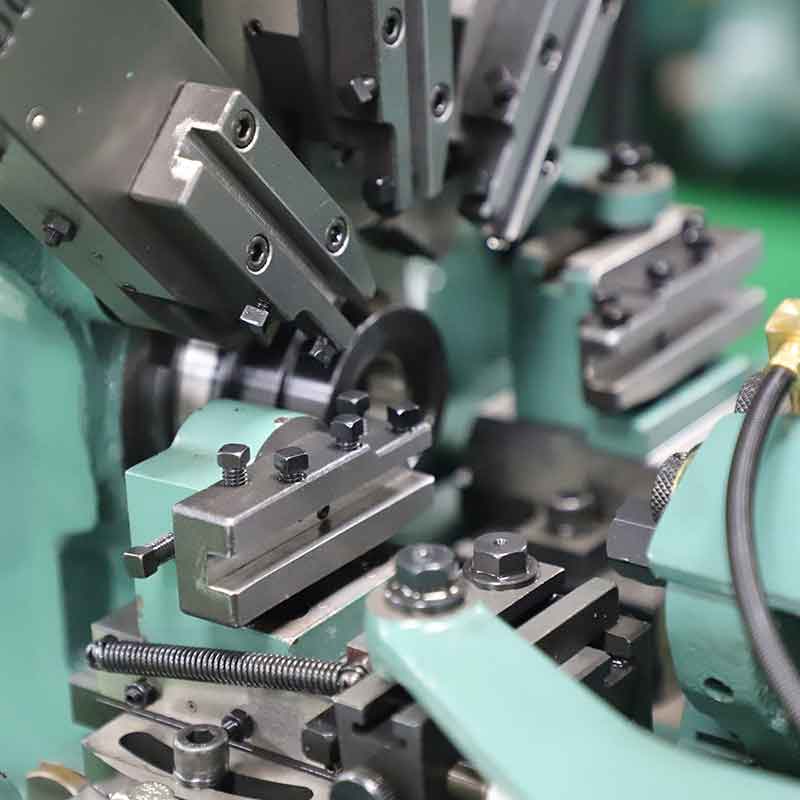

| Number of tool racks | 5 | |||||
| Number of spindle rotation speed changes | 5 steps | |||||
| Number of camshaft rotation speed changes | 15 steps | |||||
| Max.machining length | 35mm | |||||
| Max.machining diameter | 20mm | |||||
| Max.diameter of drilling | 15mm | |||||
| Max.drilling depth | 30mm | |||||
| Max.tapping diameter | Cu（brass）M1.0*P1.25:Fe M8*P1.0 | |||||
| Spindle motor | 2HP(1.5KW) | |||||
| Coolant oil pump motor | 1/4HP | |||||
| Tank | 40L | |||||
| Spindle center height | 1085mm | |||||

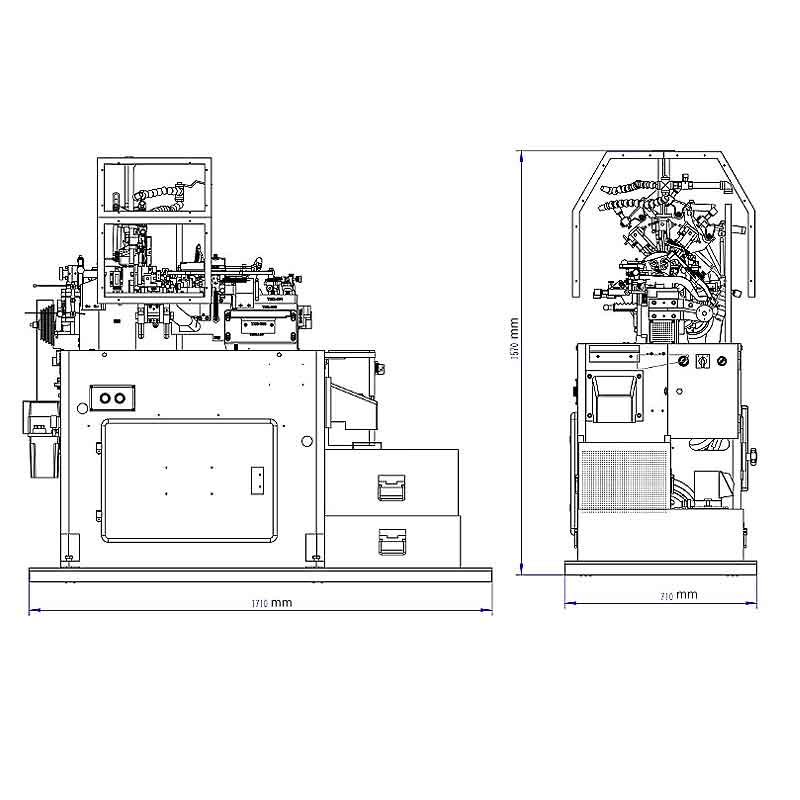

| Machine size（L*W*H） | 1700*700*1620mm | |||||
| Operating Weight | 750KG | |||||
| Package size（L*W*H） | 1900*850*1850 | |||||
