SA-125 Horizontal CNC Swiss-Type Lathe for Longitudinal Turning

The ST series machine tools are designed with a special structure to maintain high performance-price ratiowhile maximizing high-speed machining performance for various complex processes, and achieving high-quality and stable machining of small precision parts. By adopting a brand new tool holder layout and shortening the ineffective machining stroke (non cutting time) of the tool, the machining efficiency is significantly improved.

Characteristic：

• Dual-spindle synchronous machining enables one-hit complete machining without secondary clamping
• Dual-channel CNC system： SYNTEC/FANUC（optional ）
• Electric spindle high-speed turning and milling composite machining

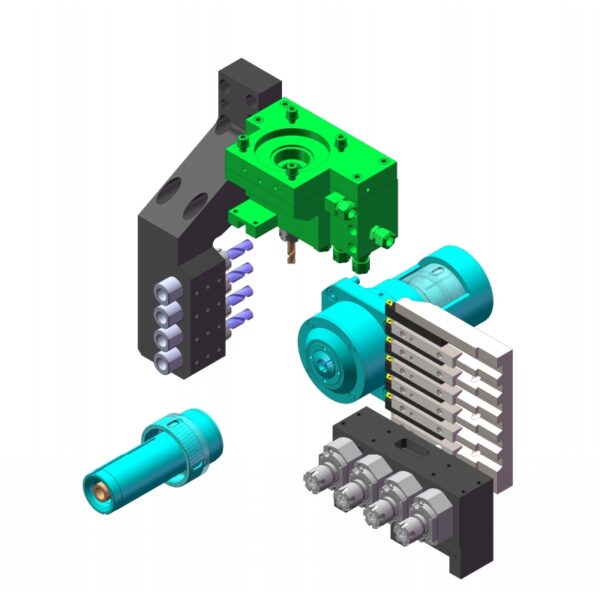

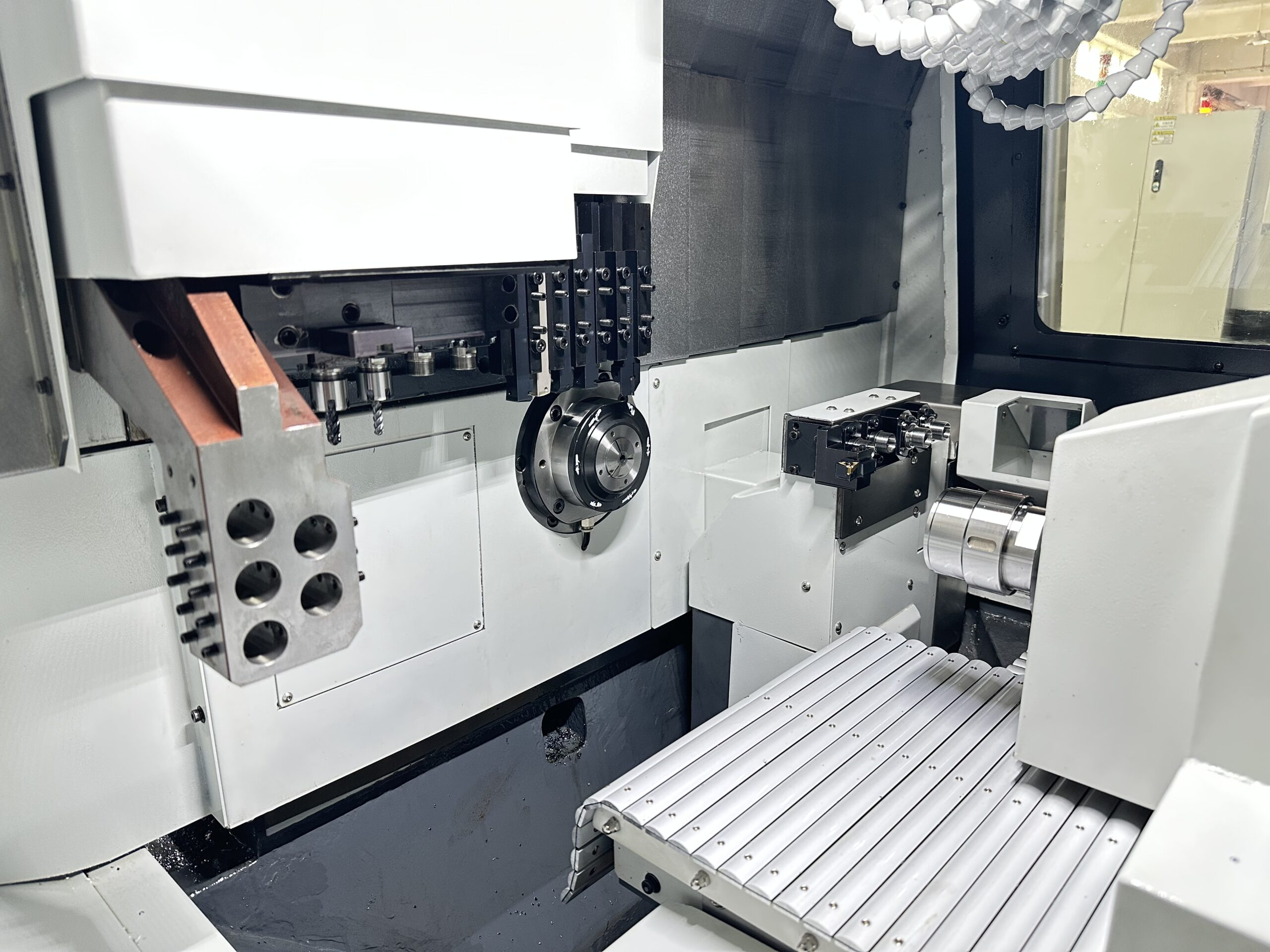

• Modular Tools Layout, Multi-axis Combined Operation; Stable, High-speed, Highly-efficient, Easy Operation

Specifications：

（Item）			ST125	Stand accessories
Max.machining diameter			φ12mm	01. CNC functions SYNTEC 200TB 02. 10.4-inch color LCD display 03. Chucking sleeve（Main/Sub） 04. Synchronous rotary guide bushing 05. O.D.tool*6 06. C axis control（Main/Sub） 07. Chucking device（Main/Sub） 08. Transverse rotating tools (4-piece type, 3*ER11+ 1*ER16 tools) 09. I.D.tool holder 10. Back end tool holder 11. Lubrication device（with level sensor） 12. Door switch 13. Separate iron chip storage tank 14. Separate cutting oil tank 15. RCD 16. Product ejector 17. Desandman 18. Guide bushing air seal 19. Main spindle air seal 20. Sub spindle air seal 21. Sub spindle air purge 22. Signal lamp 23. Work light（LED） 24. Product conveyor 25. Oil cooler
Max.headstock stroke		G.B.	85mm
		N.G.B	2.5D
Turning tools		Number	6 tools
		Model	□10mm
Face tool holder	Number	Front-end working	4 tools
		Rear-end working	2 tools（Max.4 tools）
	Max.drilling	Fixed tool axis	φ8mm
	Max.tapping	Fixed tool axis	M6*P1.25
Corss tool unit	Number		4 tools
	Model		3 ER11+1 ER16
	Max.drilling		φ6mm（ER11）
	Max.tapping		M5*P0.8(ER11)
	Max.milling		φ8mm
	speed	ER16	6,000rpm
		ER11	8,000rpm	Optional accessories
	Drive motor		0.75KW	01. Polygon maker tool holder 02. Face replaceable tool holder 03. Swiveling tool holder 04. Thread whirling 05. Hobbing tool holder 06. Fixed guide bushing 07. Rear discharge device 08. 7.0MPa coolant unit 09. 10Mpa coolant unit 10. 14Mpa coolant unit 11. Oil mist collector 12. Small diameter shockproof device 13. Cutting oil flow detection device 14. Extinguisher 15. Automatic Bar Feeder 16. Chip conveyor
Rapid traverse rate	Z1 axis		32m/min
	X1 axis		32m/min
	Y1 axis		32m/min
Main spindle speed			12,000rpm（8,000rpm-G.B.）
Main spindle indexing angle			C axis control(0.001°)
Main spindle motor			1.5/2.2KW
Main spindle through-hole diameter			φ14mm
Coolant Capacity			130L
Coolant motor			0.4KW

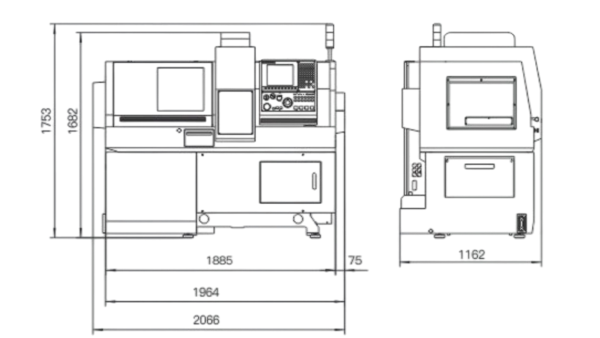

Dimensions of machine			2066*1100*1685mm
Weight			1900kg
SUB SPINDLE ATTACHMENT
Max.machining diameter			φ12mm
Max.length of front pick			80mm
Max.emerged length			50mm
Back processing	Number	ER11	4 tools（Contains optional）
	Max.drilling	Fixed tool axis	φ8mm
		Power-driven	φ6mm
	Max.tapping	Fixed tool axis	M6*P1.0
		Power-driven	M5*P0.8
Rapid traverse rate	Z1 axis		32m/min
	X1 axis		24m/min
	Y1 axis		24m/min
Sub spindle speed			12,000rpm
Sub spindle indexing angle			C axis control(0.001°)
Sub spindle motor			1.5/2.2KW
