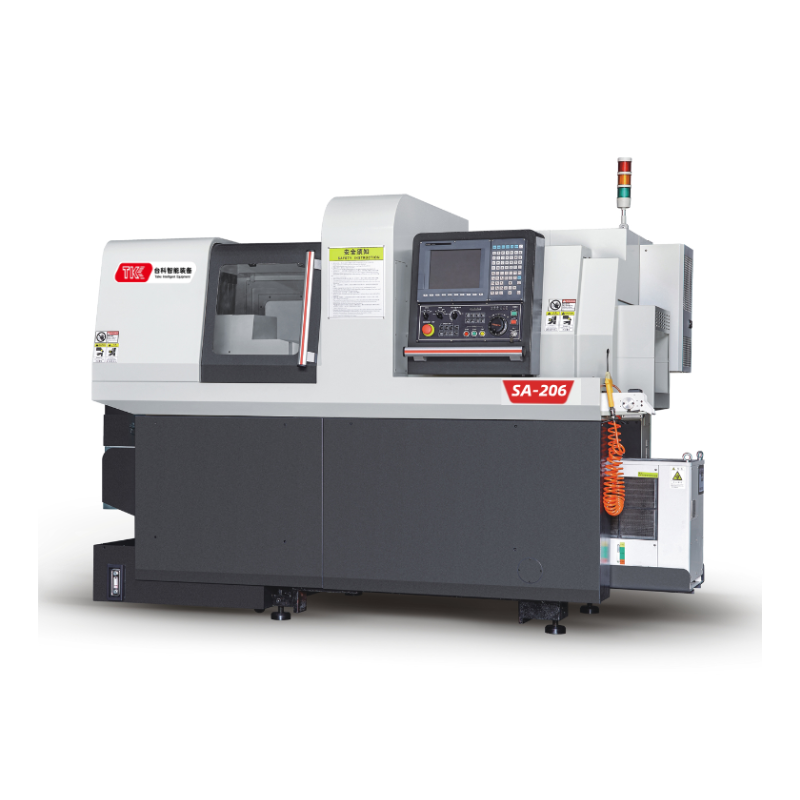

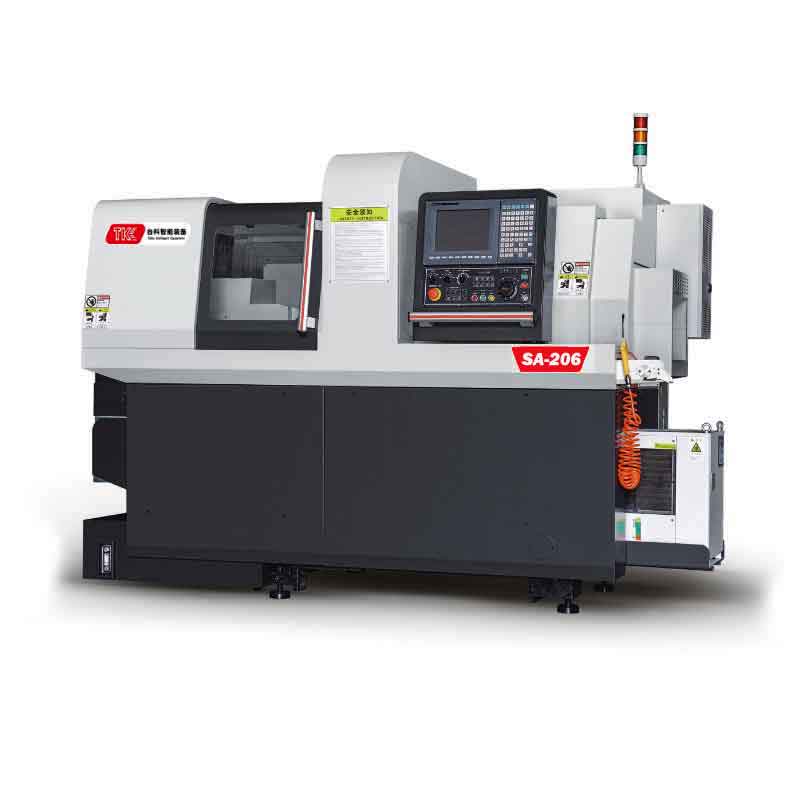

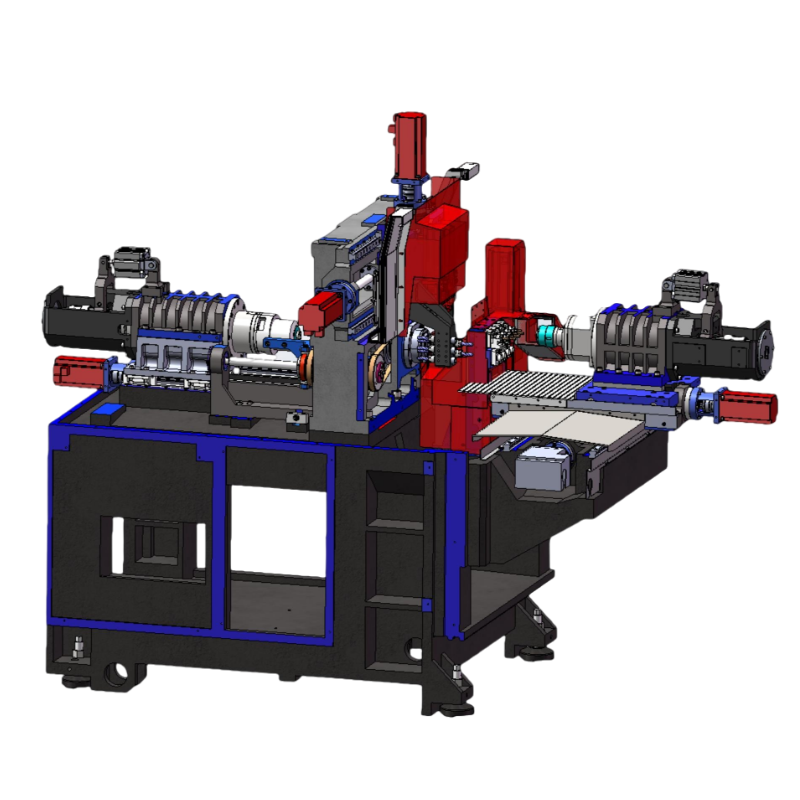

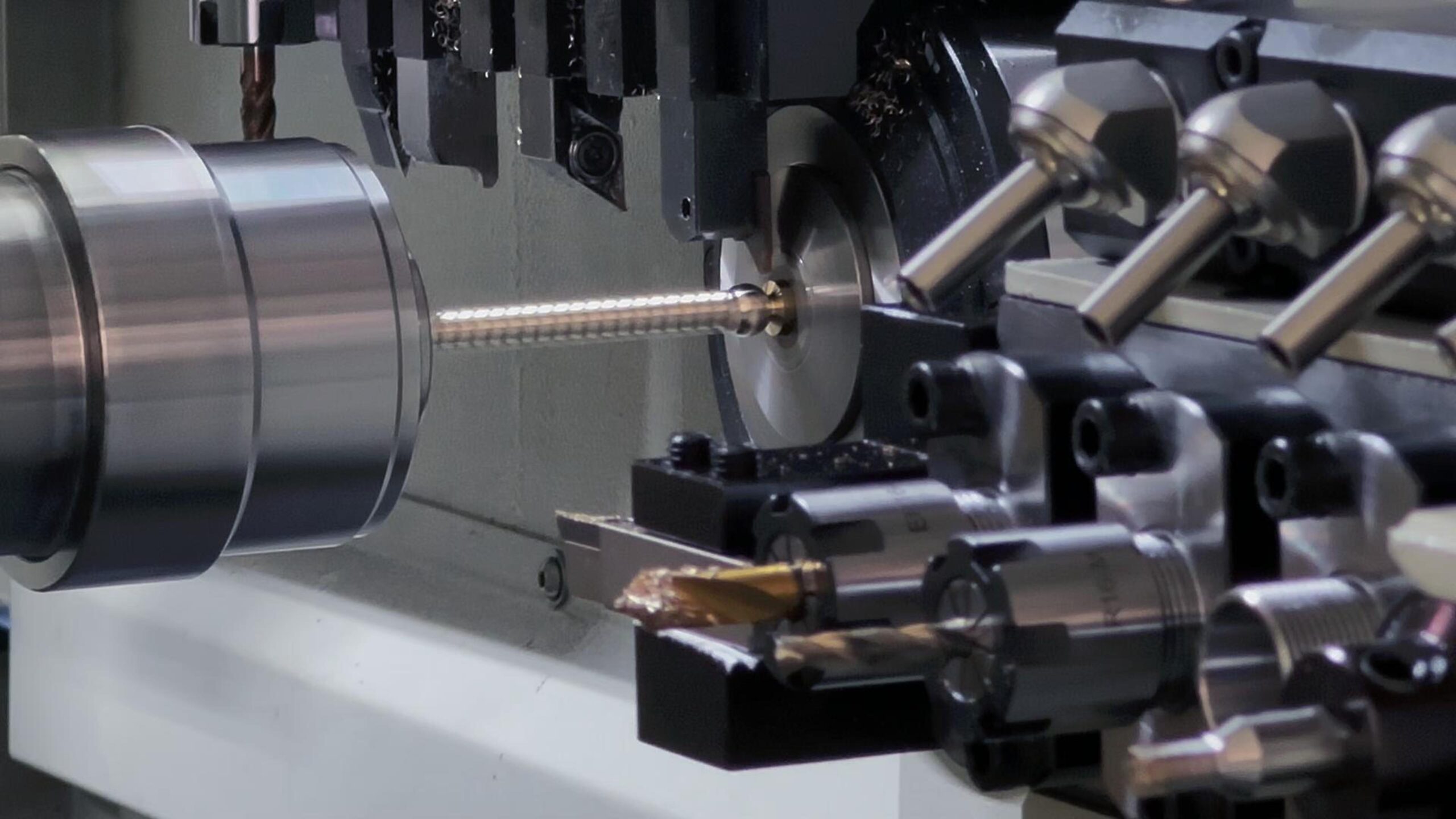

SA-206 six-axis linkage Swiss-type automatic cnc lathe

This Swiss machine tool has composite functions of turning, milling, drilling, and tapping, and is particularly suitable for large-scale, multi variety, high-precision machining tasks of slender shafts and small complex rotating parts. Our products have high precision and accuracy, and the main components are made of internationally renowned brands. Our production process and technology are in a leading position in China. The product is widely used in fields such as electronic communication, drones, optical instruments, home appliances, automotive and motorcycle parts, medical accessories, special motors, watches, fasteners, bathroom accessories, etc..

Characteristic：

• 6-axis simultaneous machining can meet various complex processes, and fully automated processing saves labor.
• Dual-spindle synchronous machining enables one-hit complete machining without secondary clamping
• Dual-channel CNC system： SYNTEC/FANUC（optional ）
• Electric spindle high-speed turning and milling composite machining
• Modular Tools Layout, Multi-axis Combined Operation; Stable, High-speed, Highly-efficient, Easy Operation

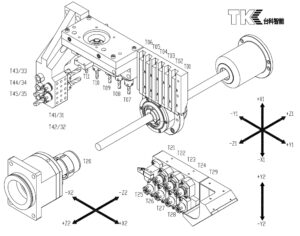

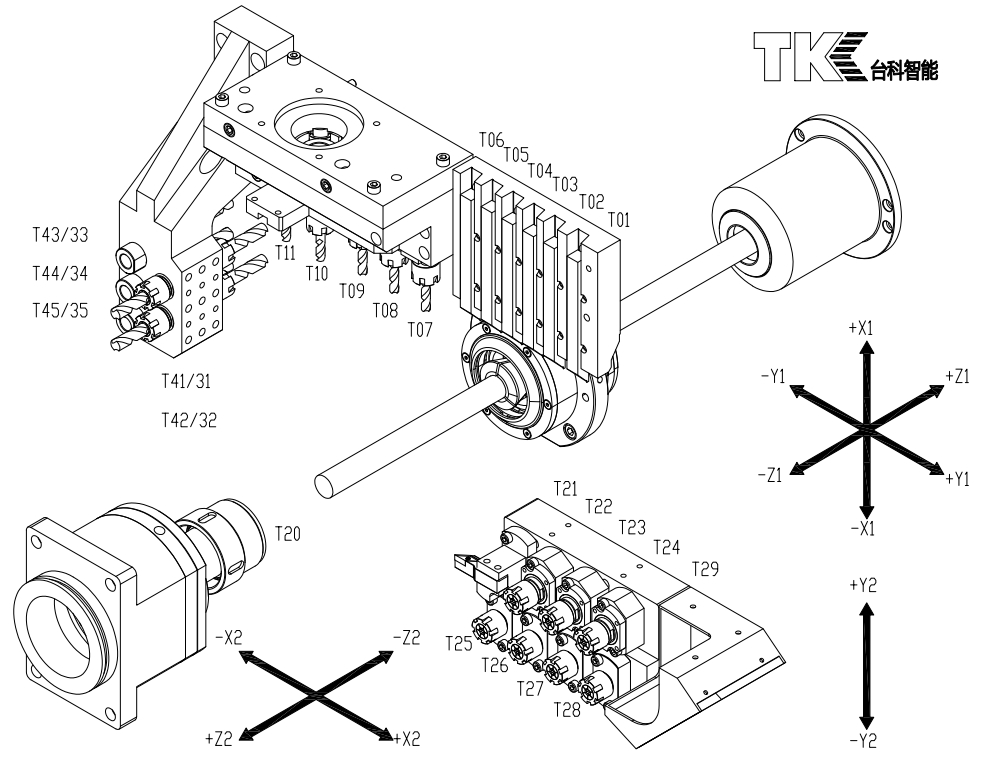

Specifications：

（Item）			SA206	Stand accessories
Max.machining diameter			φ20	01. CNC functions SYNTEC 200TB 02. 10.4-inch color LCD display 03. Chucking sleeve（Main/Sub） 04. Synchronous rotary guide bushing 05. O.D.tool*6 06. C axis control（Main/Sub） 07. Chucking device（Main/Sub） 08. Transverse rotating tools*5 09. I.D.tool holder 10. Y2 axis unit 11. Lubrication device（with level sensor） 12. Door switch 13. Separate iron chip storage tank 14. Separate cutting oil tank 15. RCD 16. Product ejector 17. Desandman 18. Guide bushing air seal 19. Main spindle air seal 20. Sub spindle air seal 21. Sub spindle air purge 22. Signal lamp 23. Work light（LED） 24. Product conveyor 25. Oil cooler
Max.headstock stroke		G.B.	255mm
		N.G.B	2.5D
Turning tools		Number	6 tools
		Model	□12mm
Face tool holder	Number	Front-end working	5 tools
		Rear-end working	2 tools（Max.5 tools）
	Max.drilling	Fixed tool axis	φ10mm
	Max.tapping	Fixed tool axis	M8*P1.25
Corss tool unit	Number		5 tools
	Model		5-ER16
	Max.drilling		φ8mm（ER16）
	Max.tapping		M6*P1.0
	Max.milling		φ10mm
	Max.slotting notch		Wide：1.5，deep：4mm
	speed	ER16	6,000rpm
	Drive motor		1.0KW
Rapid traverse rate	Z1 axis		32m/min
	X1 axis		32m/min	Optional accessories
	Y1 axis		32m/min	01. Polygon maker tool holder 02. Face replaceable tool holder 03. Swiveling tool holder 04. Thread whirling 05. Hobbing tool holder 06. Fixed guide bushing 07. Rear discharge device 08. 7.0MPa coolant unit 09. 10Mpa coolant unit 10. 14Mpa coolant unit 11. Oil mist collector 12. Small diameter shockproof device 13. Cutting oil flow detection device 14. Extinguisher 15. Automatic Bar Feeder 16. Chip conveyor
Main spindle speed			10,000rpm
Main spindle indexing angle			C axis control(0.001°)
Main spindle motor			2.2/3.7KW
Main spindle through-hole diameter			φ22mm
Coolant Capacity			170L
Coolant motor			0.4KW

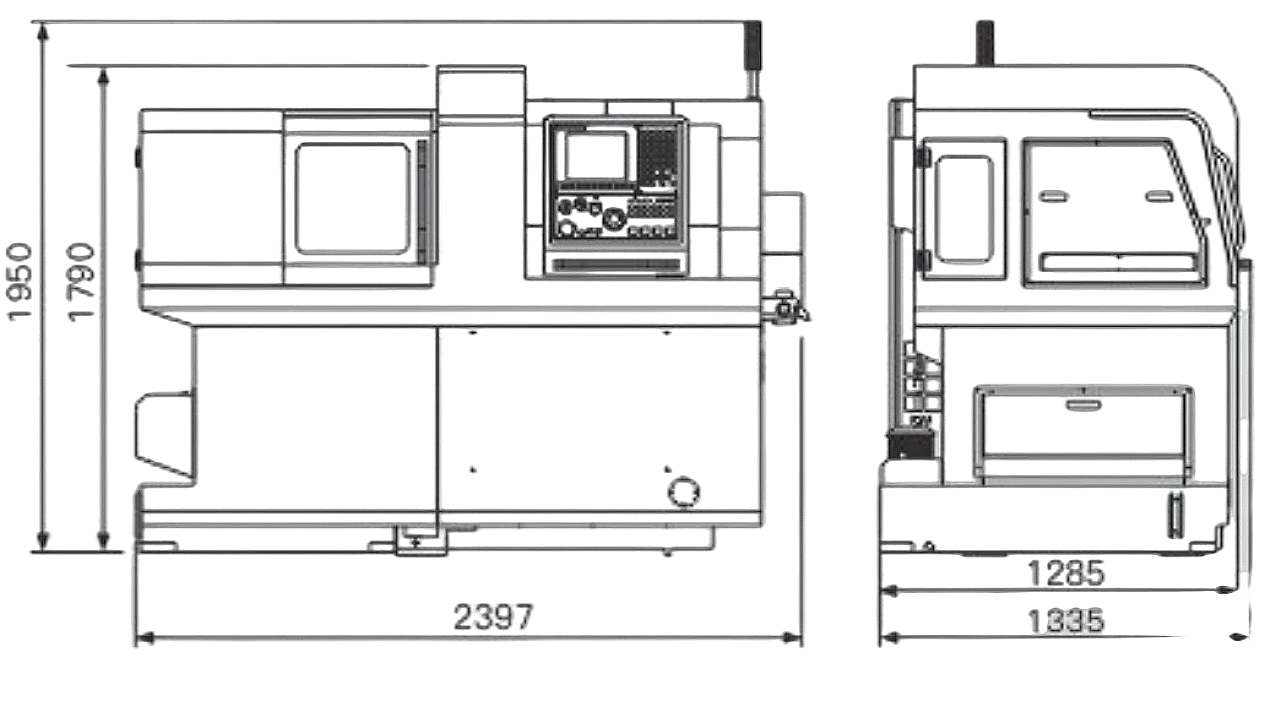

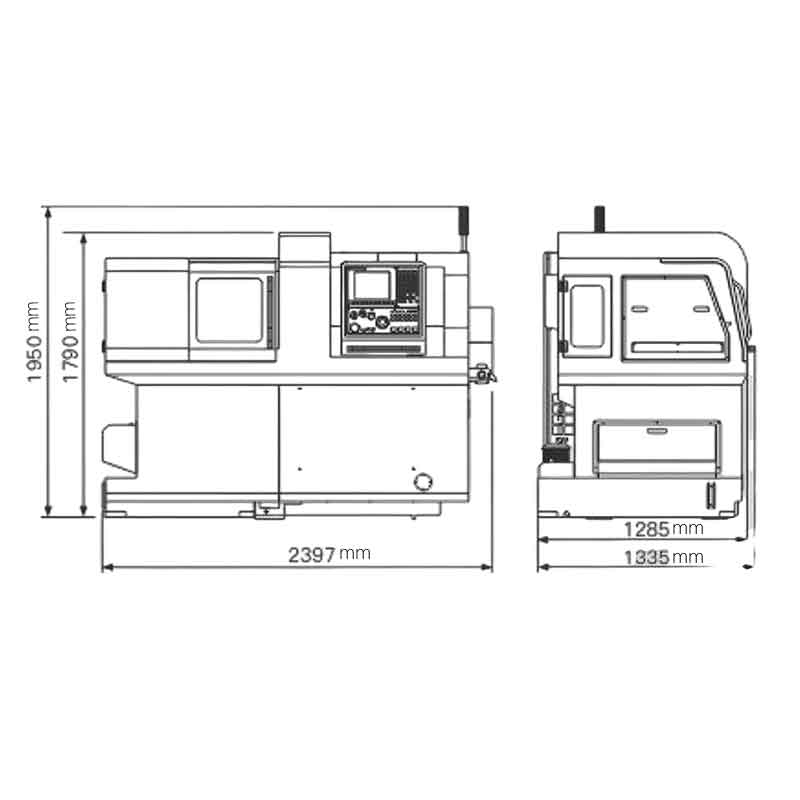

Dimensions of machine			2310*1300*1720mm
Weight			2600kg

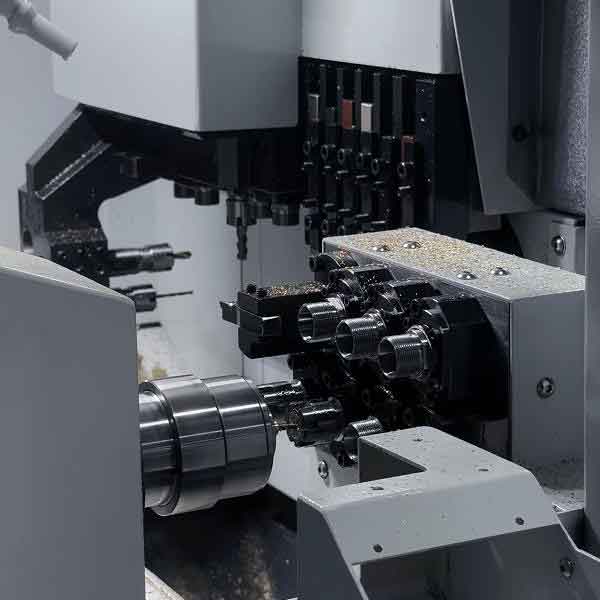

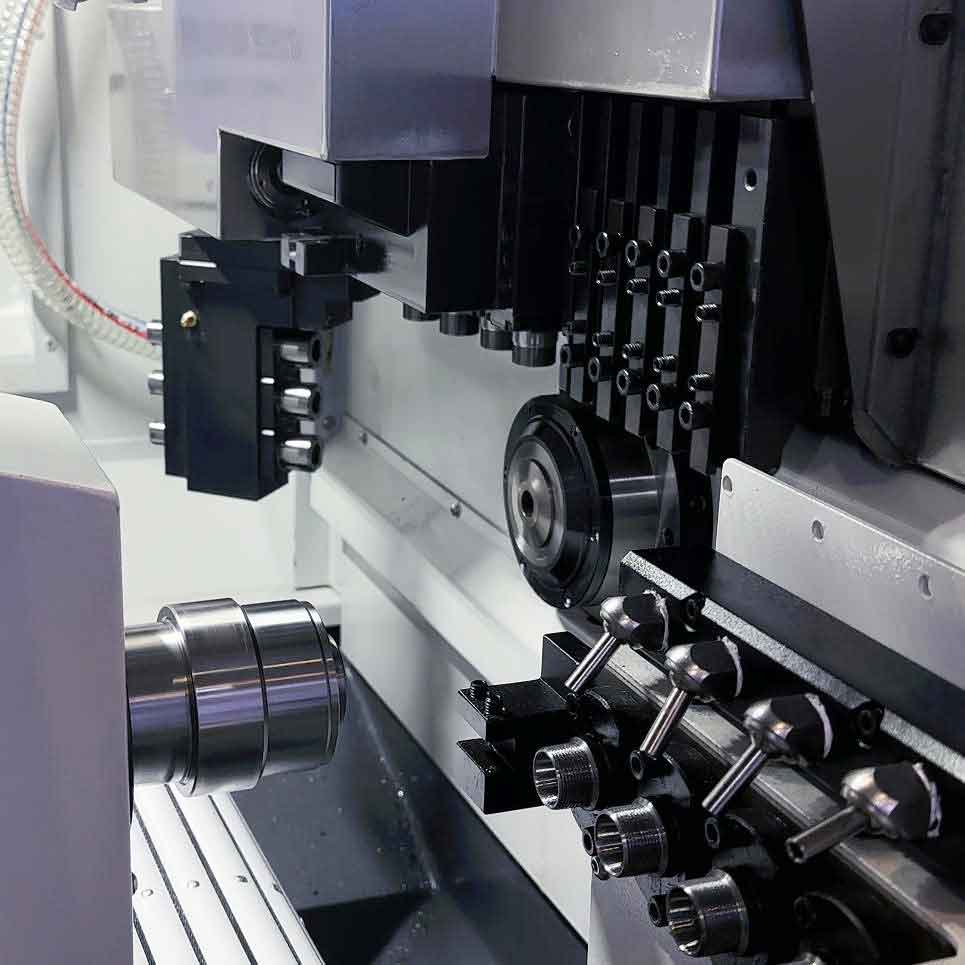

SUB SPINDLE ATTACHMENT
Max.machining diameter			φ20mm
Max.length of front pick			80mm
Max.emerged length			50mm
Back processing	Number	ER16	8 tools（Contains optional）
	Max.drilling	Fixed tool axis	φ8mm
		Power-driven	φ6mm
	Max.tapping	Fixed tool axis	M8*P1.25
		Power-driven	M6*P1.0
Rapid traverse rate	Z1 axis		32m/min
	X1 axis		24m/min
	Y1 axis		24m/min
Sub spindle speed			8,000rpm
Sub spindle indexing angle			C axis control(0.001°)
Sub spindle motor			1.5/2.2KW
