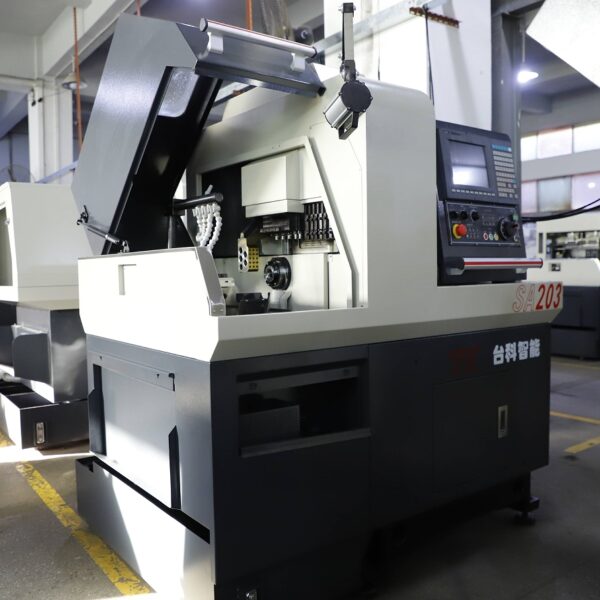

This Swiss machine tool has composite functions of turning, milling, drilling, and tapping, and is particularly suitable for large-scale, multi variety, high-precision machining tasks of slender shafts and small complex rotating parts. Our products have high precision and accuracy, and the main components are made of internationally renowned brands. Our production process and technology are in a leading position in China. The product is widely used in fields such as electronic communication, drones, optical instruments, home appliances, automotive and motorcycle parts, medical accessories, special motors, watches, fasteners, bathroom accessories, etc..
Characteristic：
- Cost-effective single axis machine tool，can meet various complex processes, and fully automated processing saves labor.
- CNC system： SYNTEC/FANUC（optional ）
- Electric spindle high-speed turning and milling composite machining
- Modular Tools Layout, Multi-axis Combined Operation; Stable, High-speed, Highly-efficient, Easy Operation
Specifications：
| 项目（Item） | SA263 | Stand accessories | |||||||
| Max.machining diameter | φ26 | 01. CNC functions SYNTEC 200TB 02. 10.4-inch color LCD display 03. Chucking sleeve（Main/Sub） 04. Synchronous rotary guide bushing 05. O.D.tool*6 06. C axis control（Main） 07. Chucking device（Main） 08. Transverse rotating tools (5-piece type, 3 detachable ER16 tools + 2 ER11 tools) 09. I.D.tool holder 10. Lubrication device（with level sensor） 11. Separate iron chip storage tank 12. Separate cutting oil tank 13. RCD 14. Product ejector 15. Desandman 16. Guide bushing air seal 17. Main spindle air seal 18. Signal lamp 19. Work light（LED） 20. Oil cooler |
|||||||
| Max.headstock stroke | G.B. | 255mm | |||||||
| N.G.B | 2.5D | ||||||||
| Turning tools | Number | 6 tools | |||||||
| Model | □12mm | ||||||||
| Face tool holder | Number | Front-end working | 5 tools | ||||||
| Max.driling | Fixed tool axis | φ10mm | |||||||
| Max.tapping | Fixed tool axis | M8*P1.25 | |||||||
| Corss tool unit |
Number | 5 tools | |||||||
| Model | 5-ER16 | ||||||||
| Max.driling | φ8mm（ER16） | ||||||||
| Max.tapping | M6*P1.0（ER16） | ||||||||
| Max.milling | φ10mm | ||||||||
| Max.slotting notch | Wide：1.5，deep：4mm | ||||||||
| speed | ER16 | 6,000rpm | Optional accessories | ||||||
| Drive motor | 1.0KW | 01. Polygon maker tool holder 02. Face replaceable tool holder 03. Swiveling tool holder 04. Thread whirling 05. Hobbing tool holder 06. Fixed guide bushing 07. Rear discharge device 08. 7.0MPa coolant unit 09. 10Mpa coolant unit 10. 14Mpa coolant unit 11. Oil mist collector 12. Small diameter shockproof device 13. Cutting oil flow detection device 14. Extinguisher 15. Automatic Bar Feeder 16. Chip conveyor |
|||||||
| Rapid traverse rate | Z1 axis | 32m/min | |||||||
| X1 axis | 32m/min | ||||||||
| Y1 axis | 32m/min | ||||||||
| Main spindle speed | 10,000rpm(7,000rpmG.B.) | ||||||||
| Main spindle indexing angle | C axis control(0.001°) | ||||||||
| Main spindle motor | 2.2/3.7KW | ||||||||
| Main spindle through-hole diameter | φ27mm | ||||||||
| Coolant Capacity | 170L | ||||||||
| Coolant motor | 0.4KW | ||||||||
| Dimensions of machine | 1900*1300*1780mm | ||||||||
| Weight | 2000kg | ||||||||
