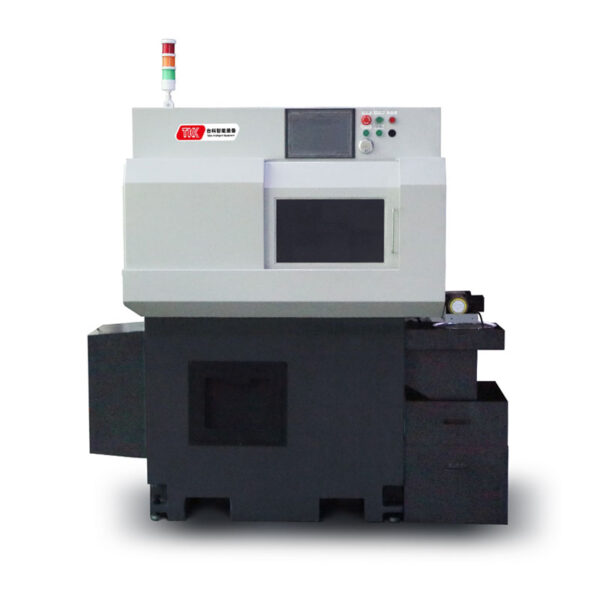

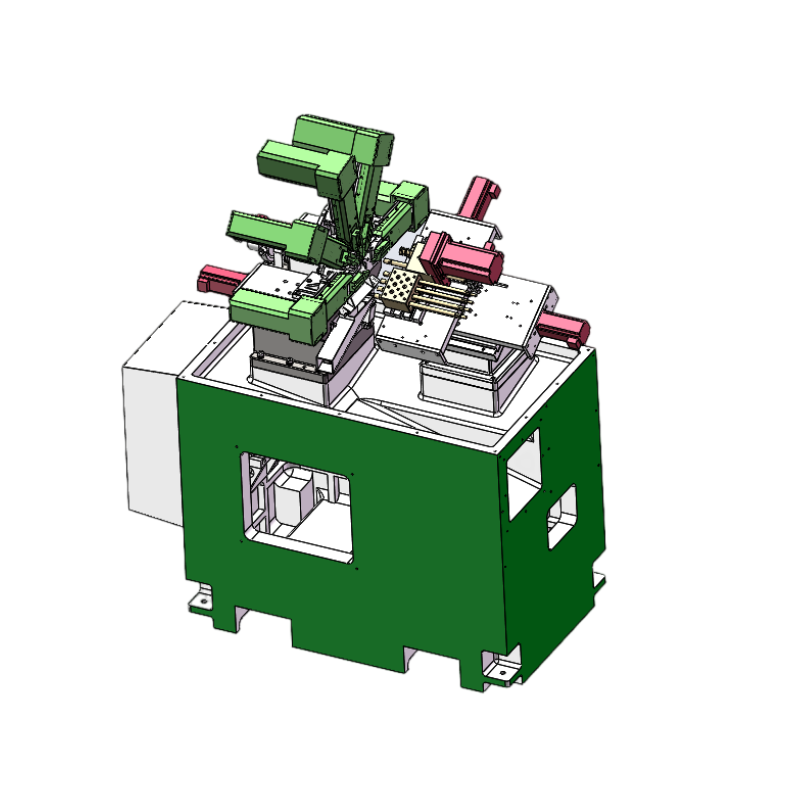

This machine tool combines the structural features of both a cam automatic lathe and a gang cnc lathe.

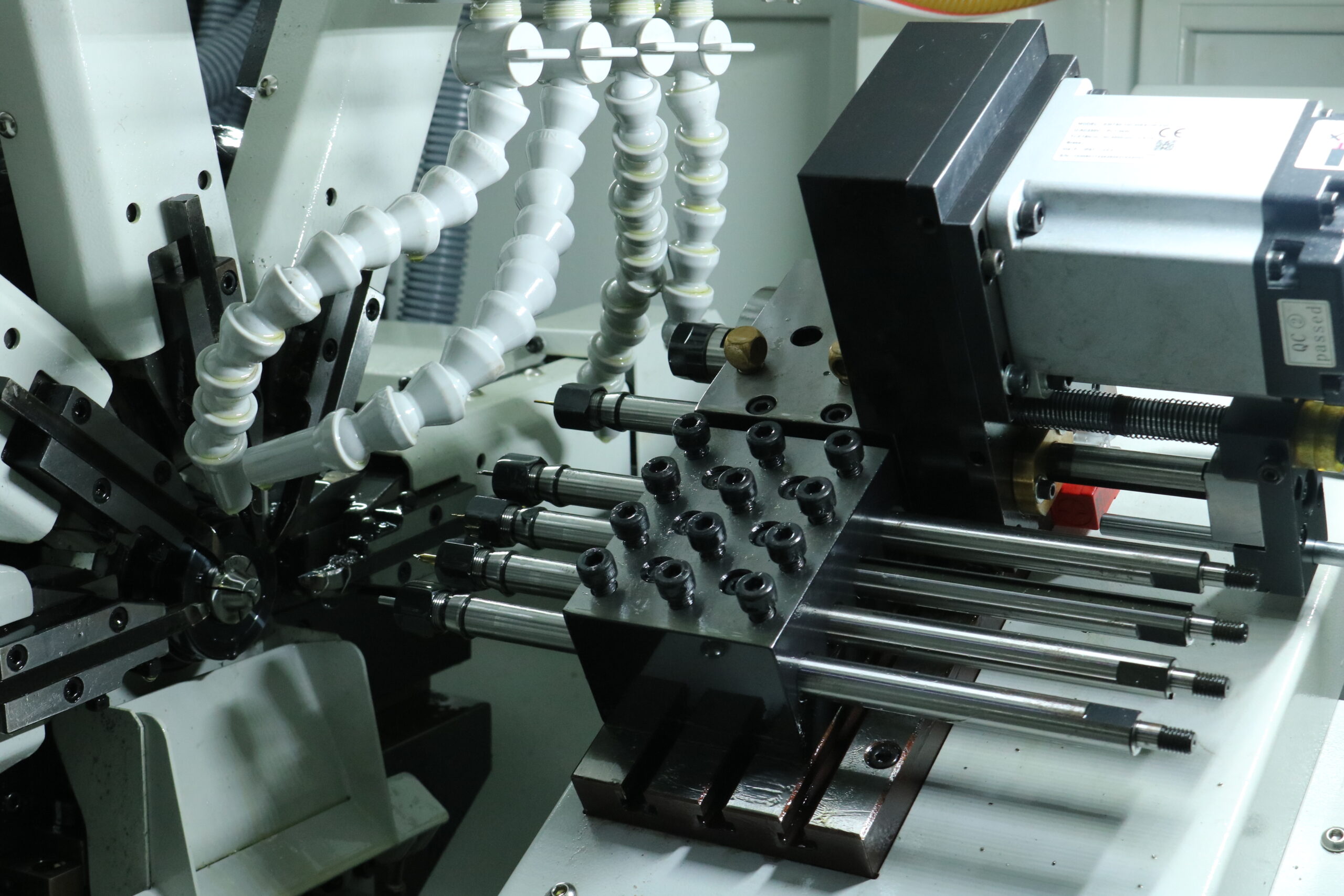

It retains all the high-efficiency capabilities of an automatic lathe, while the right-side worktable adopts the structure of a gang lathe.
With highly flexible design, it supports expandable compound turning and milling functions — such as side milling, end milling, and more. It enables complex multi-process operations in a single setup, including turning, milling, drilling, boring, tapping, slotting, and flat-face milling.
Characteristic：
- Compared to traditional cam automatic lathes, this machine improves accuracy while adopting a gang lathe structure, further enhancing rigidity. As a result, it can process a wider variety of high-hardness metals, greatly expanding the machining range.
- There is no need to customize cams for each product, which further reduces maintenance and production costs
- With significantly improved intelligence and full automation capabilities, a single operator can manage up to 20 machines, drastically reducing labor costs.
- The programming is simple and easy to learn. New operators can get started within just a few days, solving the problem of difficulty in recruiting skilled technicians.
- The machine is simple and easy to operate, featuring an intelligent operation panel that uses virtual cam angle control. This eliminates the need to customize cams for each product, further reducing production costs.
- When changing products, simply reset the cam angles — no need to replace cam components. This simplifies operation and improves setup efficiency.
| Configuration List and Mechanical Parameters of SC-15 cnc cam automatic lathe | ||
| Specifications | ||
| （Item） | SC-20 | Standard Configuration of Main Machine： 01.Synchronous spindle unit and clamping device |
| Maximum machining diameter | φ20mm | |
| Maximum drilling diameter | φ8mm | |
| Maximum tapping | M6*1.0 | |
| Maximum milling (end – face rotation) | φ10mm | |
| End – face rotation power | 1.0kW | |
| Maximum rotational speed of end – face rotation | 6000r/min | |
| Thread – cutting function for turning | Offers | |
| Multi – tool synchronous machining function | Offers | |
| Spindle power | 4.0kW | |
| Maximum spindle speed | 6000r/min | |
| Tool holder | □8mm | |
| Number of tool installations | 11 | |
| Stroke of X1, 2, 3, 4, 5 axes | 30mm | |
| Stroke of Z1, 2 axes | 55mm |
|
| Stroke of X6 axis (cross – slide) | 190mm | |
| Stroke of Z3 axis (cross – slide) | 150mm | |
| Stroke of X1, 2, 3, 4, 5 axes | 0.4kW | |
| Power of Z1, 2 axes | 0.4kW | |
| Power of X6 axis (cross – slide) | 0.4kW | |
| Power of Z3 axis (cross – slide) | 0.4kW |
|
| Rapid traverse speed | 30m/min | |
| Center height of spindle | 1110mm | |
| Coolant capacity | 80L | |
| Power of coolant motor | 0.4kW | |

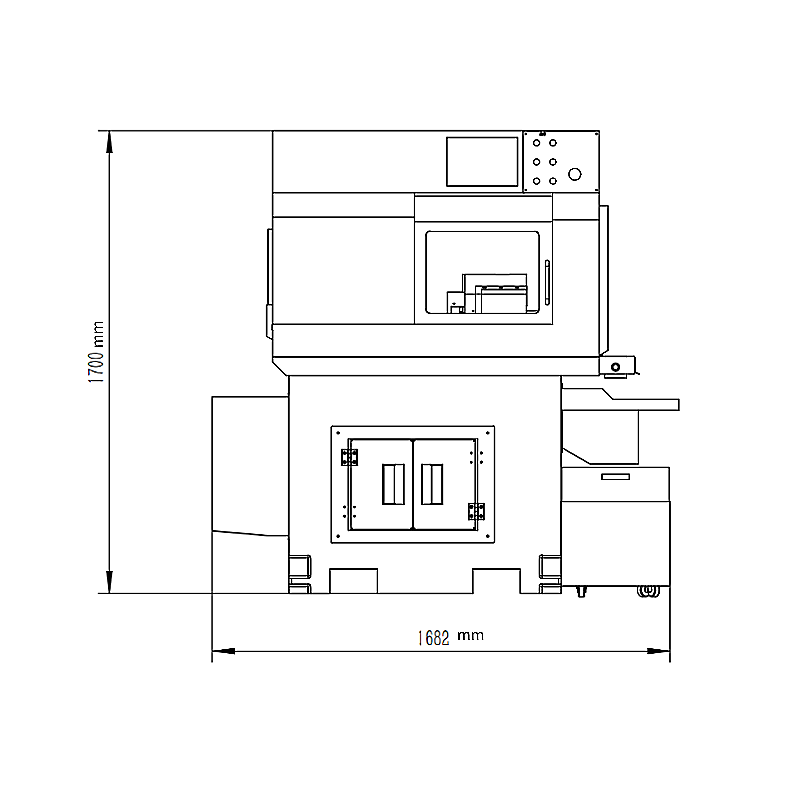

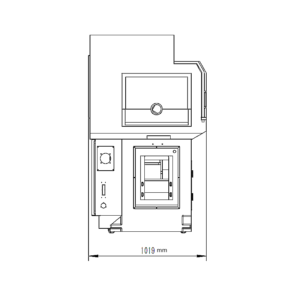

| Overall dimensions (length * width * height) | 1770mm×950mm×1560mm | |
| Machine weight | 1700kg | |
