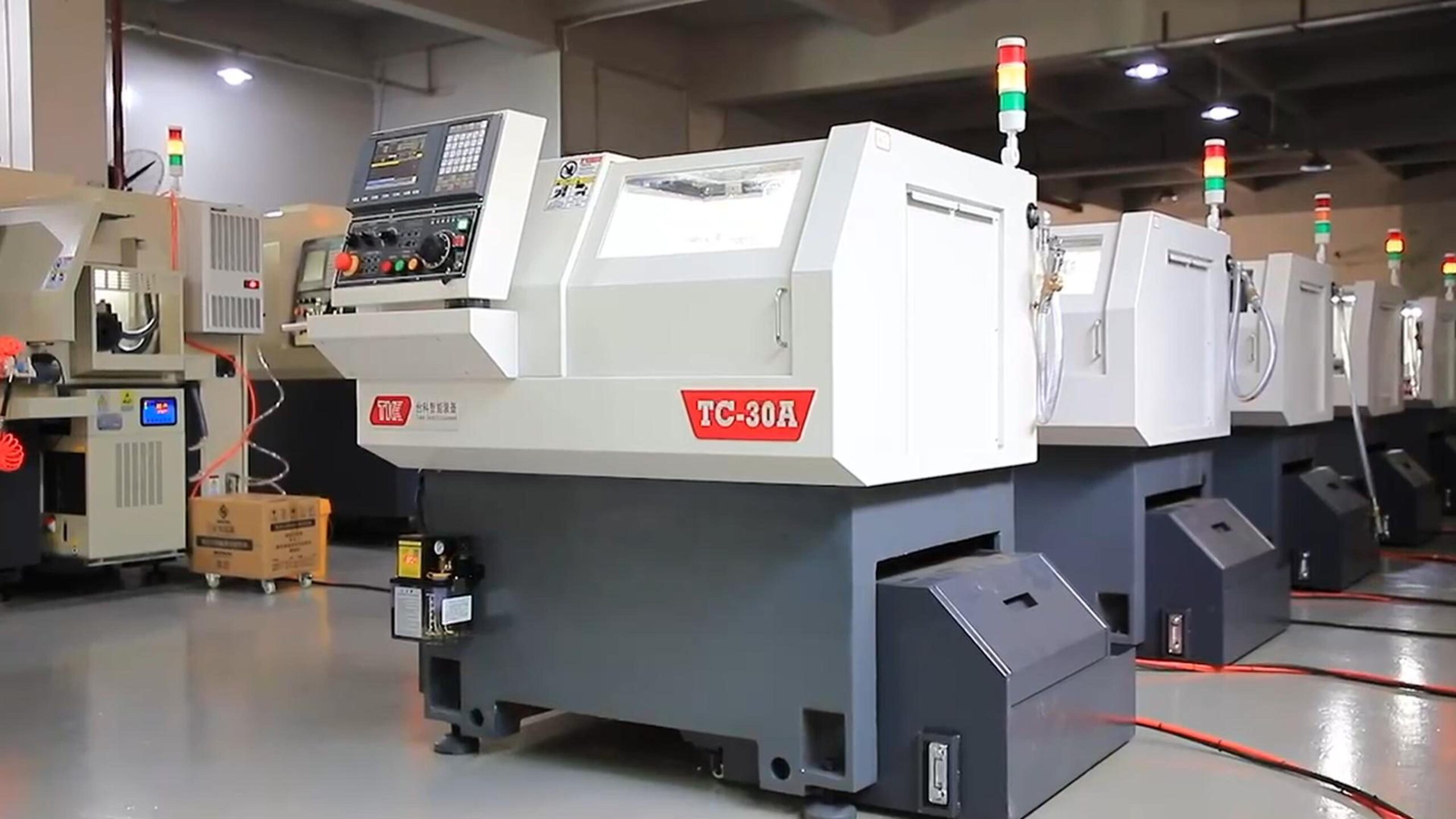

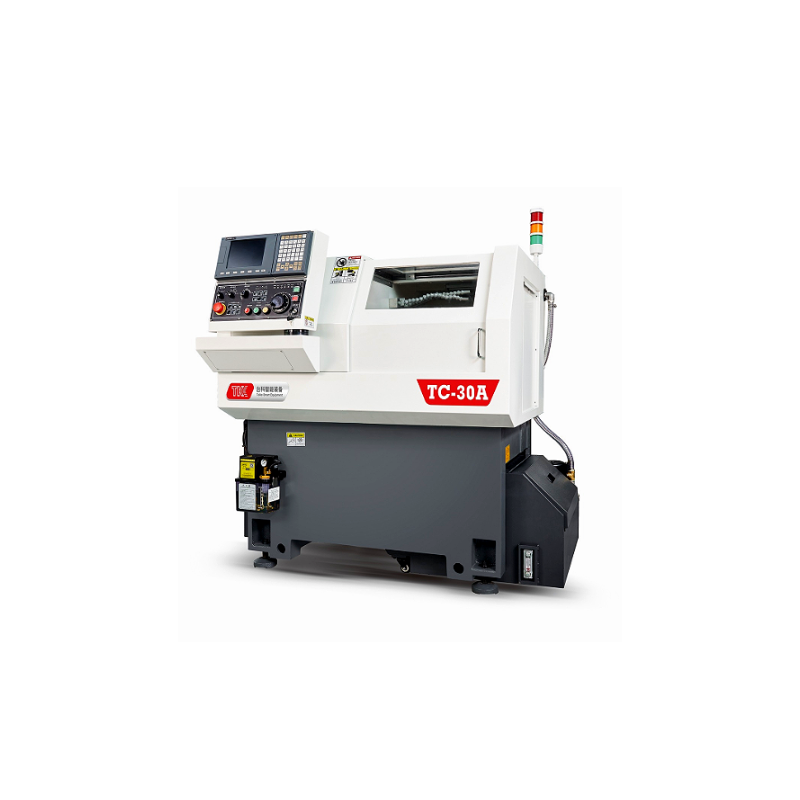

The TC20A is a practical and economical lathe developed based on the actual needs of a large number of machining users. It features simplicity, practicality, easy operation, high machining precision, and a small footprint. It can perform complex machining operations on parts, such as machining straight lines, tapers, arcs, and threads. It is especially suitable for the mass – production of tiny and precise parts, including various instruments, meters, electronic products, micro – components, connectors, glasses, watches, lighters, and various small hardware accessories. The CNC system of this lathe is easy to operate and has reliable performance.
Characteristic：

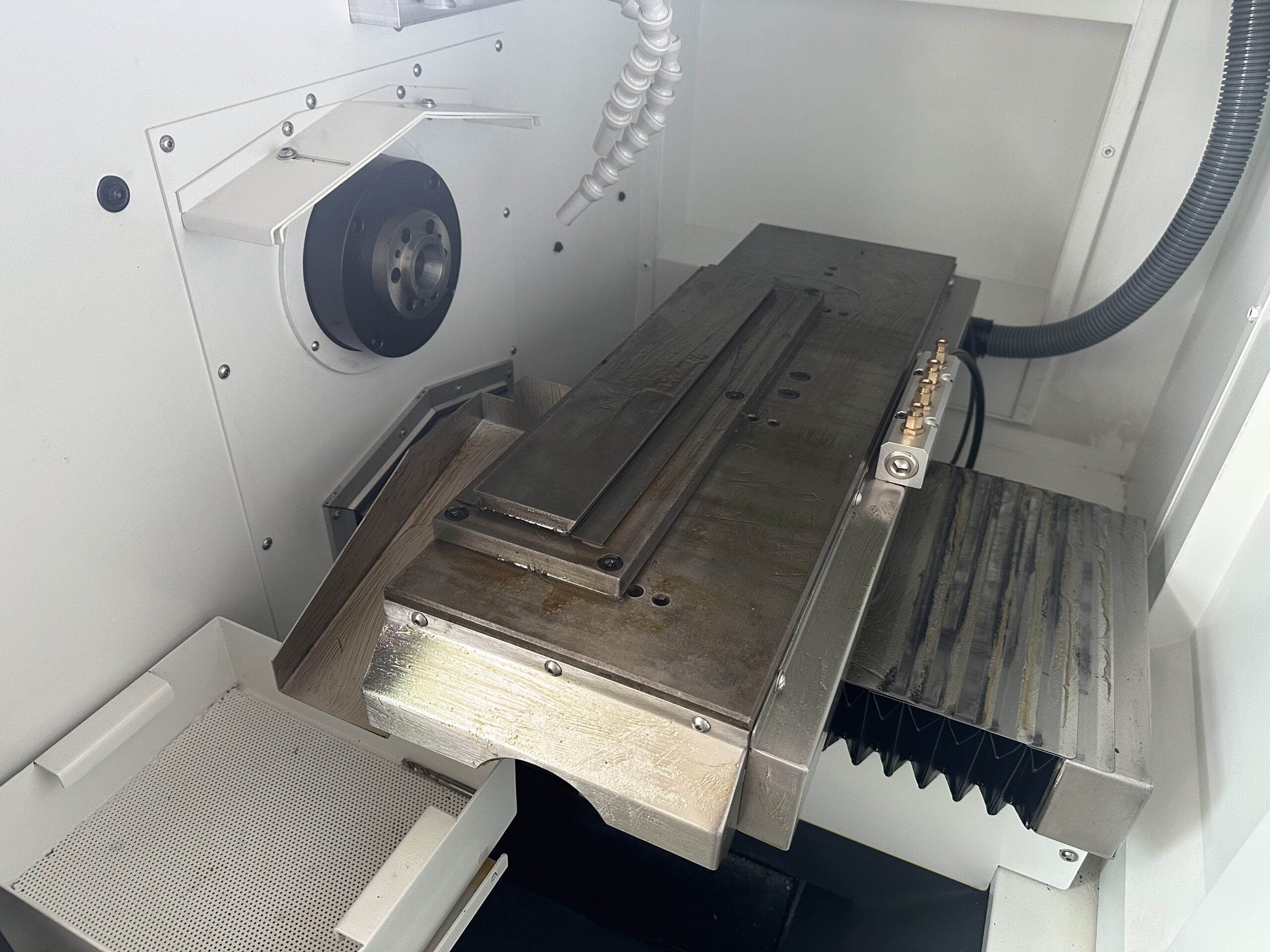

- It adopts HIWIN ground ball screws and linear guideways, which provide excellent rigidity and enable fast movement during turning operations.
- The control panel features a swivel arm design, ensuring easy and convenient operation.
- Featuring a one-piece casting design, it offers high precision and a small footprint, saving space.
Specifications：
| （Item） | TC30A | Stand accessories | |||||||
| Processing range | Max.spring collet holding diameter | φ30mm | 01.Coolant unit 02.Lighting unit 03.Centralized lubrication unit 04.Air lube unit 05.Coolet open/close device 06.Unfinished spring collet 07.Spring coollet adapter 08.Preset base 09.Tool holder S1/S2/S3/AH1 10.Boring cutter holder 11.Lathes drawing machine 12.Ddrill clamp（Includes ER16*2 ） 13.Parts receivr device 14.Circuit breaker 15.Machine base 16.Signal lamp 17.Tool box | 1Set 1Set 1Set 1Set 1Set 1Pcs 1Pcs 1Pcs 1for each 1Pcs 1Pcs 1Set 1Set 1Set 4Pcs 1Pcs 1Set | |||||
| Max.swing diameter over bed | φ260mm | ||||||||
| Max. swing diameter over tool post base | φ110mm | ||||||||
| Max.machining diameter | φ100mm | ||||||||
| Max.maching length | φ110mm | ||||||||
| Main spindle through-hole diameter | φ32.5mm | ||||||||
| Kinematic Characteristics | Main spindle motor | 6000rpm | |||||||
| Rapid traverse | 30m/min | ||||||||
| Motor | Main spindle motor | 3.7/5.5KW | |||||||
| Servo motor | 0.75KW | ||||||||
| Coolant motor | 130W | ||||||||
| Accuracy | Positioning accuracy（X/Y/Z） | 0.005mm | |||||||
| repeat positioning accuracy（X/Y/Z） | 0.002mm | Optional accessories | |||||||
| Max.stroke | X axis | 520mm | 01.Various spring collet 02.Various tool holder 03.Parts conveyer device 04.Bar feeder 05.Power chuck 4 inch 06.Cross dirven tools 07.Spindle indexing positioning device 08.Guide bush holder | ||||||
| Z axis | 220mm | ||||||||
| Required electric power | 6KVA | ||||||||
| Height from floor to spindle center | 995mm | ||||||||

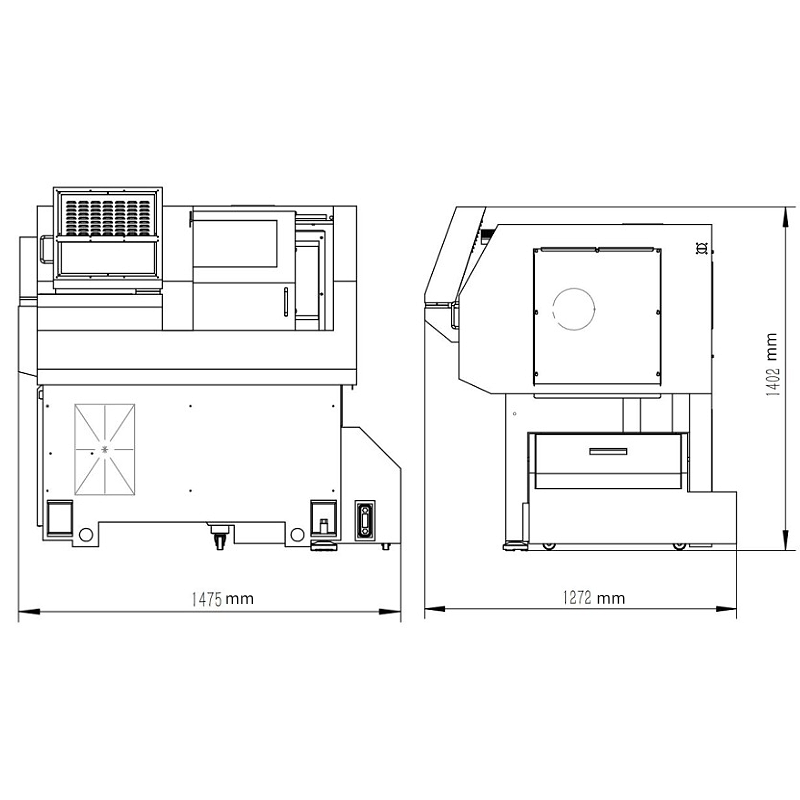

| Dimensions of machine | 1475*1170*1420mm | ||||||||
| Weight | 1100kg | ||||||||
